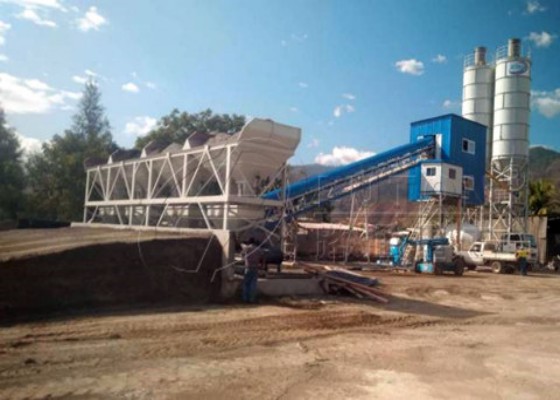

HZS90 concrete batching plant is a medium-to-large stationary concrete plant designed for continuous, igh-efficiency concrete production. With a theoretical capacity of 90m³/h, it is widly used in infrastructure projects, commercial concrete production, and large construction sites.
This model combines strong production capacity with reliable mechanial performance, making it a popular choice for contractors and concrete companies seeking stable and efficient concrete supply.
High production capacity for large projects
Stable continuous operation
Advanced automatic control system
Durable twin-shaft mixing technology
Flexiblbe configuration options
Contact us today to receive factory pricing and a customized technical proposal.
What Is an HZS90 Concrete Batching Plant
The HZS90 batching plant is a fully integrated concrete productin system that combines aggregate storage, precise batching, efficient mixing, and intelligent control.
A standard HZS90 plant typically includes:
- Twin-shaft concrete mixer
- Aggregate batching machine
- Cement silos and screw conveyors
- Accurate weighing systems
- PLC automatic control system
Compared with smaller batching plants, the HZS90 offers higher output and stronger production stability, making it ideal for projects requiring large and continuous concrete supply.
This model is widely used in developing infrastructure markets such as Kazakhstan, Philippines, and Nigeria.
| Item | Specification |
| Theoretical Productivity | 90 m³/h |
| Mixer Model | JS1500 Twin-shaft Mixer |
| Batching Machine | PLD2400 |
| Aggregate Bins | 3-4 bins |
| Discharge Height | 3.8m |
| Weighing Accuracy | Aggregate ±2%, Cement ±1%, Water±1% |
| Control System | Fully Automatic PLC |
| Total Installed Power | Approx. 150kW (depending on configuration) |
Technical System Overview
Aggregate Batching System
Aggregates are stored in multiple bins and loaded by wheel loader. Each bin is equipped with a pneumatic arc gate feeder controlled by PLC to ensure accurate material discharge.
High-precision load cells perform sequential accumulation weighing. After batching, aggregates are transported by belt conveyor to the lifting system and discharged into the mixer.
Advantages:
- High batching accuracy
- Stable feeding process
- Reduced material loss
JS1500 Twin-Shaft Concrete Mixer
The JS1500 twin-shaft mixer is the core component of the HZS90 plant, providing efficient and uniform mixig for various concrete grades.
Features
- High mixing efficiency
- Short mixing cycle
- Wear-resistant liners and blades
- Suitable for commerical concrete production
Cement and Powder System
High conveying efficiency
Durabel spiral blades for long service life
Screw Conveyors
Sealed design prevents cement leakage
Cement Silos
Capacity options: 100T/150T/200T
Equipped with dust collectors and pressure safety valves
Powder Weighing
- Independent weighing system
- High precision measurement
- Automatic compensation control
Water and Additive System
The water and admixture system ensures precise dosing for consistent concrete quality.
- Independent weighing tanks
- Automatic dosing control
- High measurement accuracy
This system helps maintain the correct water-cement ratio in every batch.
Conveying System – Belt Conveyor Type
The HZS90 batching plant usually adopts a belt conveyor system to transport aggregates.
Advantages
- Continuous feeding
- Higher efficiency for large output
- Suitable for long-term operation
Automatic Control System
PLC Intelligent Control
- Fully automatic production control
- Formula storage and management
- Real-time production monitoring
- Data recording and reporting
Operator Interface
- Touch screeen operation panel
- Simple and intuitive control interface
- Multi-language support optional
Safety Protection
- Automatic fault alarm system
- Emergency stop protection
- Equipment safety monitoring
Applications of HZS90 Concrete Batching Plant
The HZS90 plant is widely used in projects requiring stable and large-scale concrete production:
- Highway and Bridge Construction
- Urban infrastructure projects
- Commercial concrete supply companies
- Industrial construction projects
- Large residential developments
Many HZS90 plants are currently operating in infrastructure projects across Uzbekistan, Malaysia, and Kenya.
Key Advantages of HZS90 Batching Plant
High Production Capacity
Capable of supplying large construction projects with continuous concrete production.
Stable Long-Term Operation
Designed for heavy-duty operation with reliable mechanical components.
Advanced Automation
PLC-based control system improves efficiency and reduced labor requirements.
Flexible Configuration
The plant can be customized with additional silos, environmental protection systems, and automation upgrades.
Export and Installation Experience
Our HZS90 batching plant have been exported to numerous countires, including:
Infrastructure Project in Saudi Arabia
Commercial Concrete Plant in Russia
Commercial Concrete Plant in Indonesia
Bridge Construction Project in Ethiopia
Project photos, operation videos, and client references are available upon request.
HZS90 Concrete Batching Plant Price
The price of an HZS90 batching plant depends on configuration, automation level, and optional equipment.
Typical factory price range： USD 65,000 – 120,000
Price factors include:
- Cement silo quantity and capacity
- Control system configuration
- Environmental protection equipment
- Installation and commissioning services
- Shipping method and destination
Contact us for an accurate quotation based on your project requirements.
Is HZS90 Suitable for Your Project?
The HZS90 batching plant is recommended if your project requires:
- Output of around 80-90 m³/h
- Continuous concrete supply
- Medium to large construction projects
- Reliable long-term production
For even large projects, higher-capacity plants such as HZS120 or HZS180 may be considered.
For smaller-scale projects, compact HZS75 or HZS60 may be suitable. And for even small-sized projects, we have HZS35 and HZS25 models.
Frequently Asked Questions
How much land area is required for HZS90?
Generally 3,000-5,000 ㎡ depending on plant layout and storage capacity.
How many operators are required?
Normally 5-7 workers for standard operation.
Can the plant produce different concrete grades?
Yes, including standard concrete, high-strength concrete, and specially mixes.
Do you provide overseas installation service?
Yes. We provide remote technical guidance and on-site engineer support.
Request a Quote for HZS90 Concrete Batching Plant
Provide your project details to receive a customized solution
- County
- Project type
- Required capacity
- Budget range
- Expected delivery time
Send inquiry now – our engineers will respond within 24 hours
