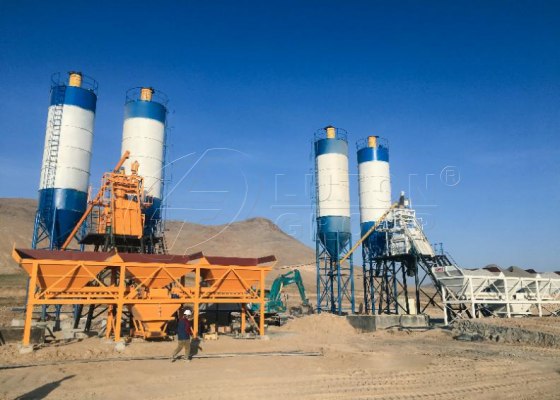

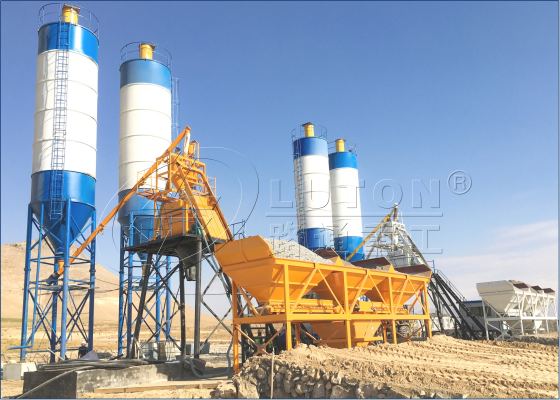

The HZS75 concrete batching plant is a medium-sized stationary plant designed for continuous and reliable concrete production. With a theoretical output of 75m3/h, it is widely used in commercial concrete supply, urban infrastructure projects, and medium-scale construction works.
This model offers an excellent balance between production capacity, investment cost, and operational efficiency, making it one of the most popular choices for contractors and concrete companies worldwide.
Medium Capacity with High Efficiency
Stable Continuous Production
Suitable for Commercial Concrete Business
Reliable Twin-shaft Mixing Technology
Customizable Configuration Options
| Model | HZS75 |
| Rated Productivity | 75m³/h |
| Main Mixer | JS1500 |
| Aggregate size(Pebble/Macadam)(mm) | 80/60 |
| Matched Aggregate Batcher | PLD2400 |
| Aggregate Weighing Accuracy | ±2% |
What Is an HZS75 Concrete Batching Plant
The HZS75 batching plant is a fully integrated concrete production system combining aggregate storage, precise batching, efficient mixing, and automated control.
It typically includes:
- Twin-shaft concrete mixer
- Aggregate batching machine
- Cement silos and screw conveyors
- Weighing systems for all materials
- Automatic PLC control system
This model is especially suitable for growing concrete business that require higher output than small plants but do not need the investment of large-scale stations.
It is widely used in markets such as Indonesia, Pakistan, and Nigeria, where infrastructure development and urban construction are rapidly expanding.
Technical System Overview

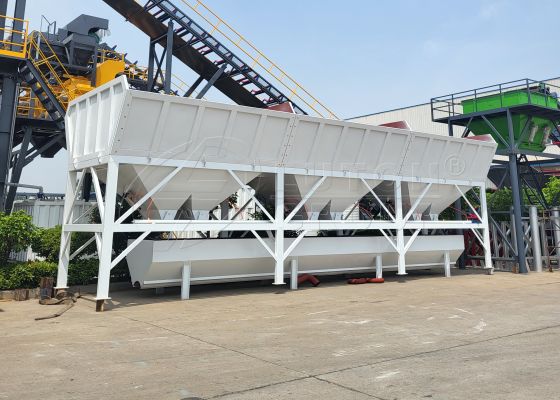

Aggregate Batchig System
Aggregates are loaded into storage bins by wheel loader. Each bin is equipped with a pneumatic arc gate feeder controlled by a cylinder and PLC system to ensure precise discharge.
High-precision load cells enable accurate sequential weighing of aggregates. After batching, materials are transported by belt conveyor to the skip hoist, which lifts them into the mixer.
Advantages
- Accurate batching
- Stable operation
- Reduced material waste
Mixing System

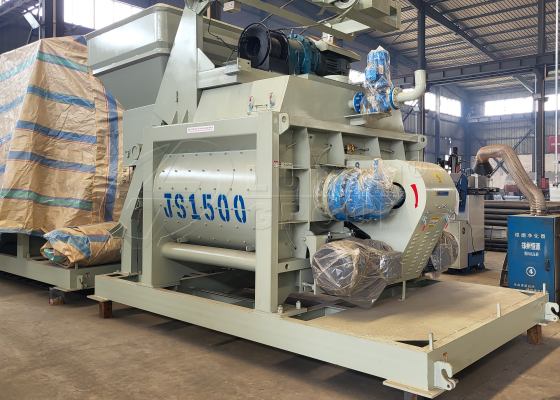

JS1500 Twin-shaft Concrete Mixer
The core mixing unit delivers fast, uniform mixing suitable for commercial concrete production.
Features
- High mixing efficiency
- Short cycle time
- Wear-resistant liners and blades
- Suitable for various concrete grades
Cement & Powder System
- Cement Silos
Optional capacities: 50T-200T
Equipped with dust collectors and safety valves

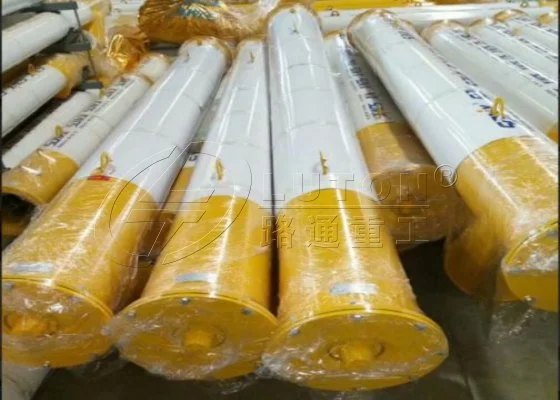

- Screw Conveyors
Sealed transportation
High conveying efficiency
Durable spiral blades

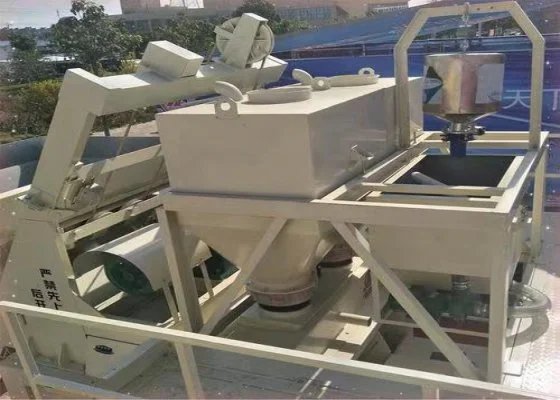

- Powder Weighing
Independent load cell system
High accuracy (±1%)
Automatic compensation control
Water & Additive System
- Separate weighing tanks
- Automatic dosing control
- Accurate water-cement ratio control
Ensure consistent concrete quality across production cycles.

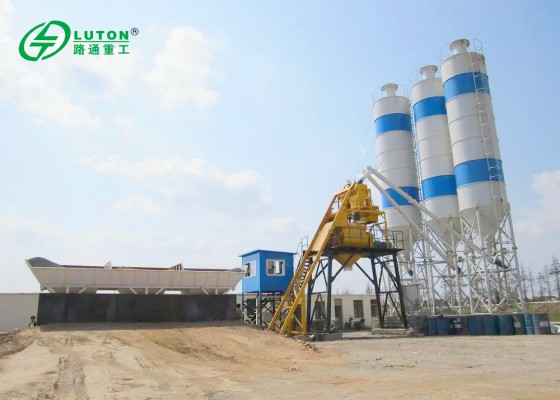

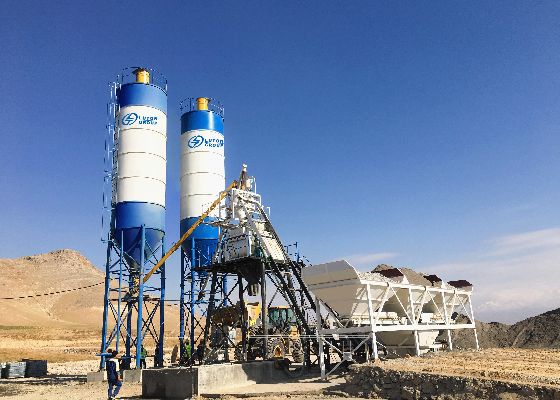

Lifting System – Skip Hoist Type
Aggregates are lifted along guide rails by skip hoist and discharged into the mixer.
Advantages
- Compact structure
- Lower installation cost
- Suitable for medium-capacity plants

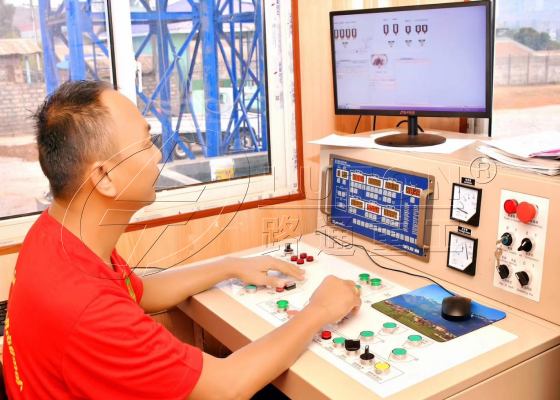

Automatic Control System
- PLC-Based Intelligent Control
- Fully automatic and manual modes
- Formula storage capacity
- Real-time production monitoring
- Production data recording
Applications of HZS75 Concrete Batching Plant
The HZS75 plant is ideal for projects requiring stable medium-scale concrete supply:
- Commercial concrete production
- Urban infrastructure construction
- Highway and bridge projects
- Industrial building construction
- Precast concrete factories
It has been successfully deployed in infrastructure projects across Philippines, Kazakhstan, and Ethiopia.
Key Advantages of HZS75 Batching Plant
Balanced Investment and Output
Provides significantly higher production than small plants while maintaining reasonable costs.
Suitable for Commercial Concrete Business
Capable of continuous operation to meet market demand.
Reliable Mechanical Structure
Heavy-duty components ensure long service life and reduced downtime.
Expanded Configuration
Additional silos, environmental systems, and automation upgrades can be added as needed.
Export & Installation Experience of HZS75 Concrete Plant
Our HZS75 plants have been exported worldwide, including:

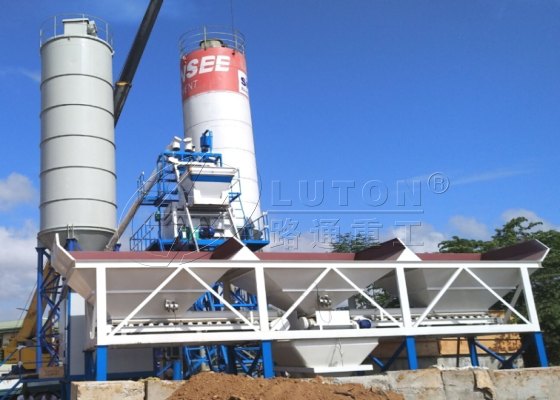

Commercial Concrete Supplier in Sri Lanka

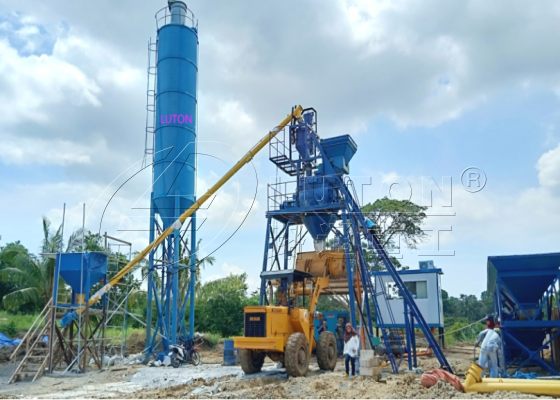

Industrial Building Construction in the Philippines
Highway Construction Project in Uzbekistan
Infrastructure Project in Saudi Arabia
Project photos, videos, and references are available upon request.
HZS75 Concrete Batching Plant Price
The price varies depending on configuration, automation level, and optional equipment.
Typical factory price range:
USD $50,000-$65,000
Key factors affecting price:
- Number and capacity of cement silos
- Control system level
- Environmental protection equipment
- Installation service
- Shipping requirements
Contact us for a customized quotation tailored to your project.
Is HZS75 the Right Model for Your Project
Choose HZS75 if you need:
- Output around 60-75 m3/h
- Stable commercial concrete production
- Moderate investment with strong profitability
- Reliable long-term operation

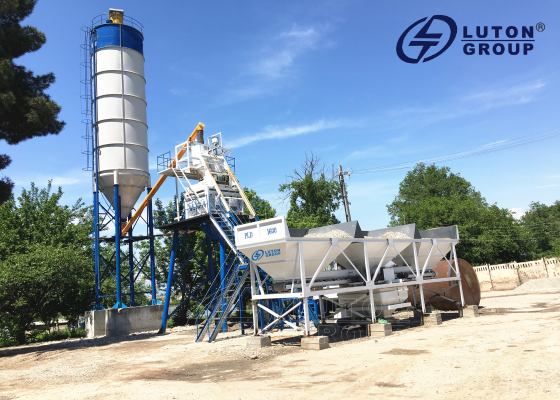

For small projects, compact models such as HZS35 or HZS50 are ideal.
For larger projects, higher-capacity models such as HZS90 or HZS120 may be more suitable.
Our engineers can provide professional selection advice.
Frequently Asked Questions
How much land area is required?
Typically 2000-3000m2 depending on layout and storage capacity.
How many operators are needed?
Usually 4-6 workers for standard operation.
Can the plant operate continuously?
Yes. It is designed for long-term continuous production.
Do you provide overseas installation support?
Yes. Remote guidance and on-site engineer services are available.
Request a Quote for HZS75 Concrete Batching Plant
Submit your project details to receive a customized solution:
- Country
- Project type
- Required capacity
- Budget range
- Expected delivery time
Send inquiry now – response within 24 hours
